Design - 3D Controls

3D Control Controls

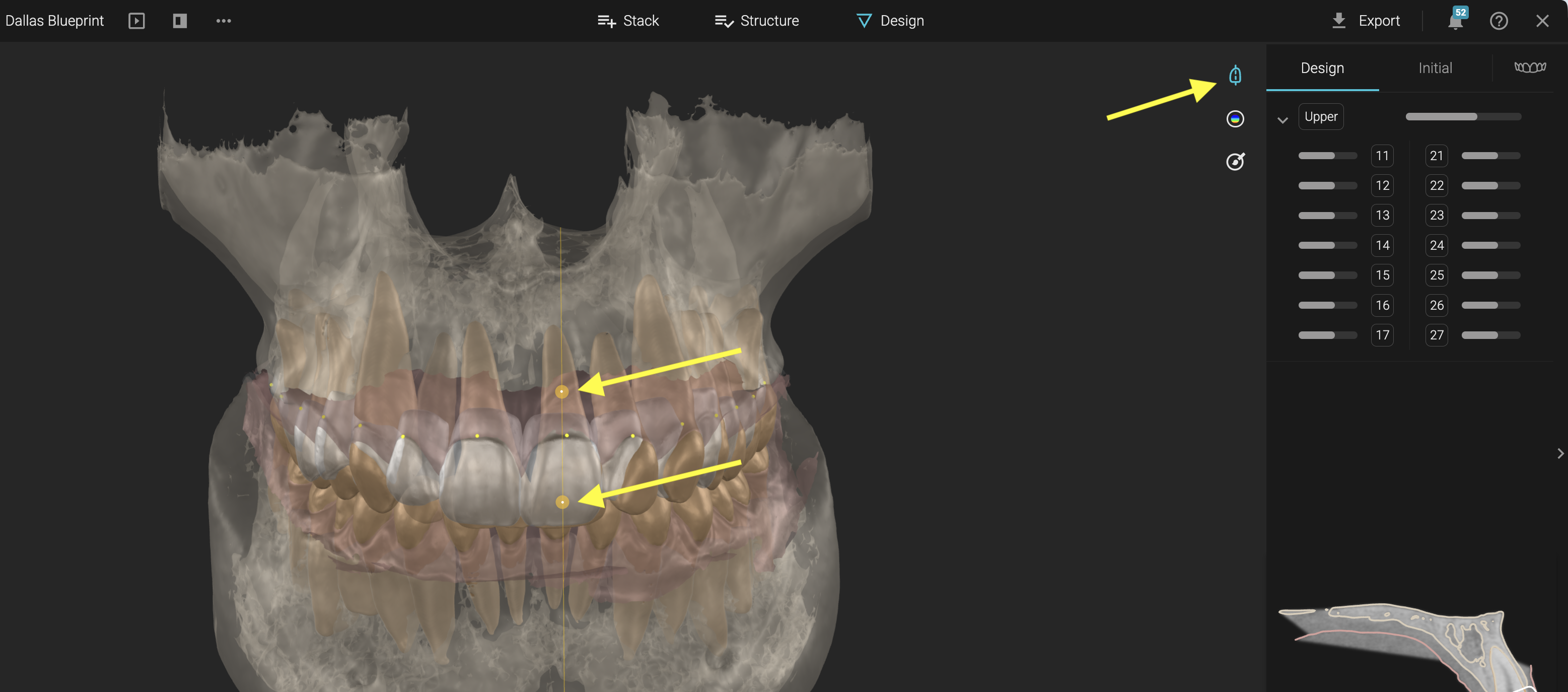

Cross-section : Click on the cross-section button -> then place 2 points to create the section

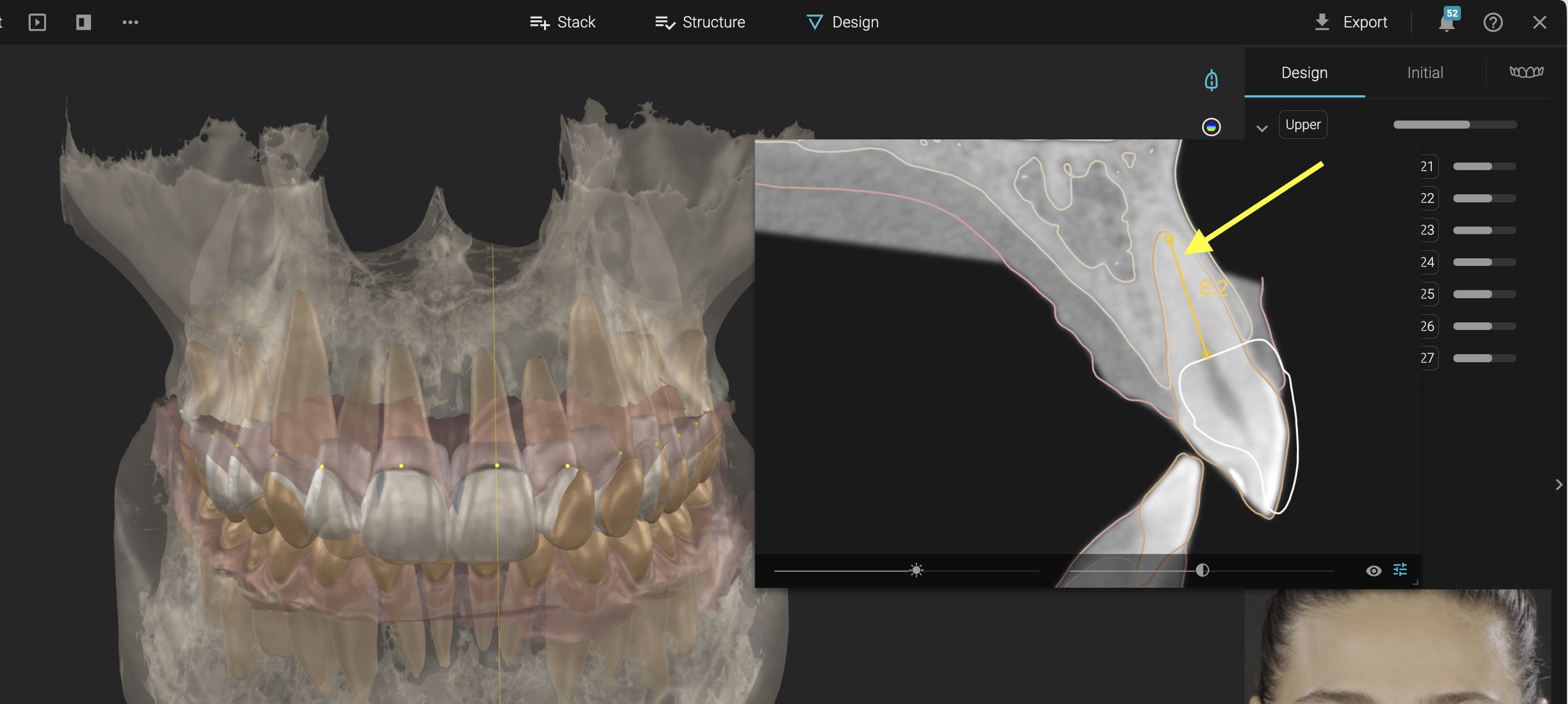

On the cross-section window, double-click to place points and measure

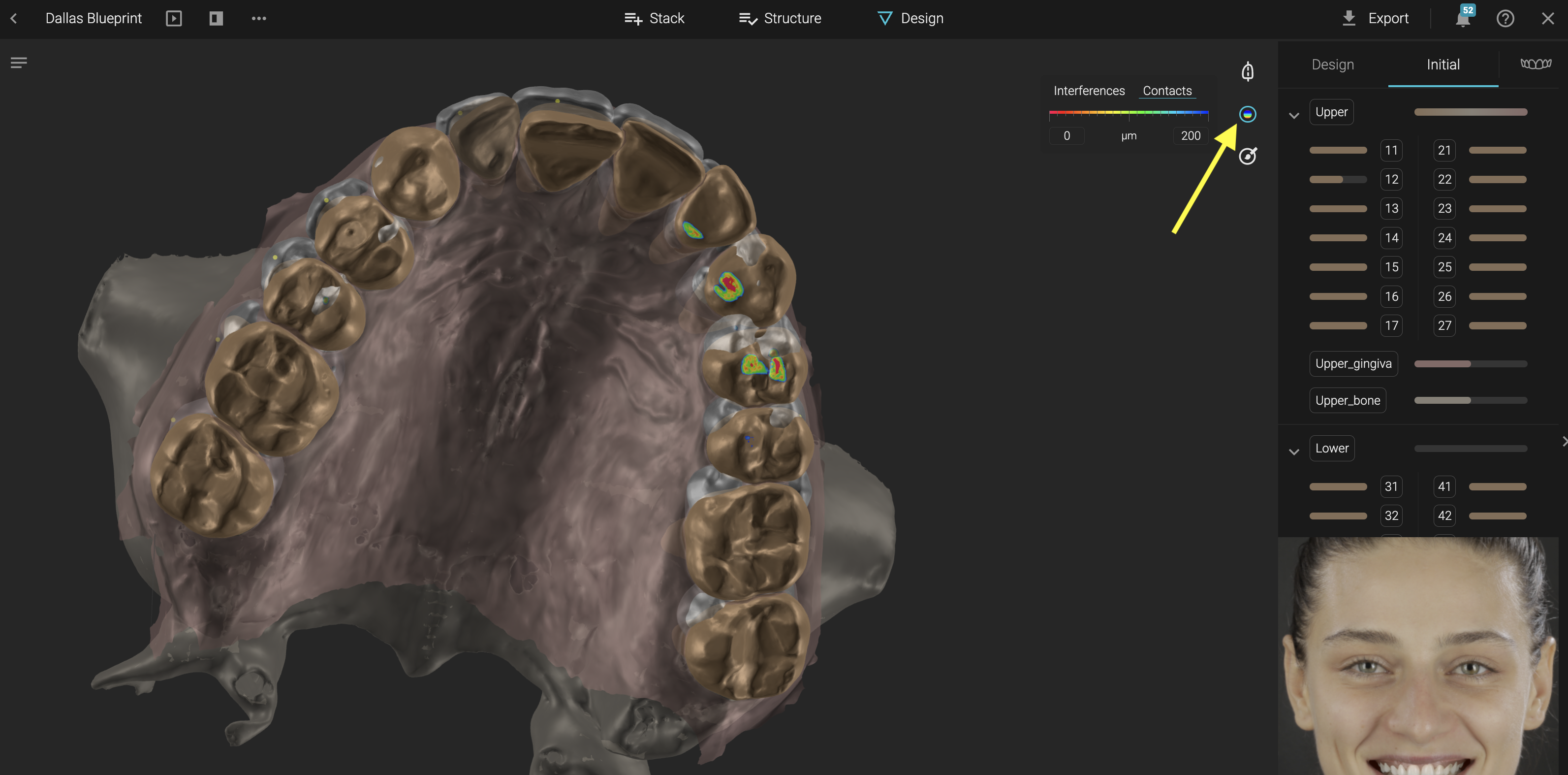

Heatmap - Activate the heatmap to show contacts or interferences

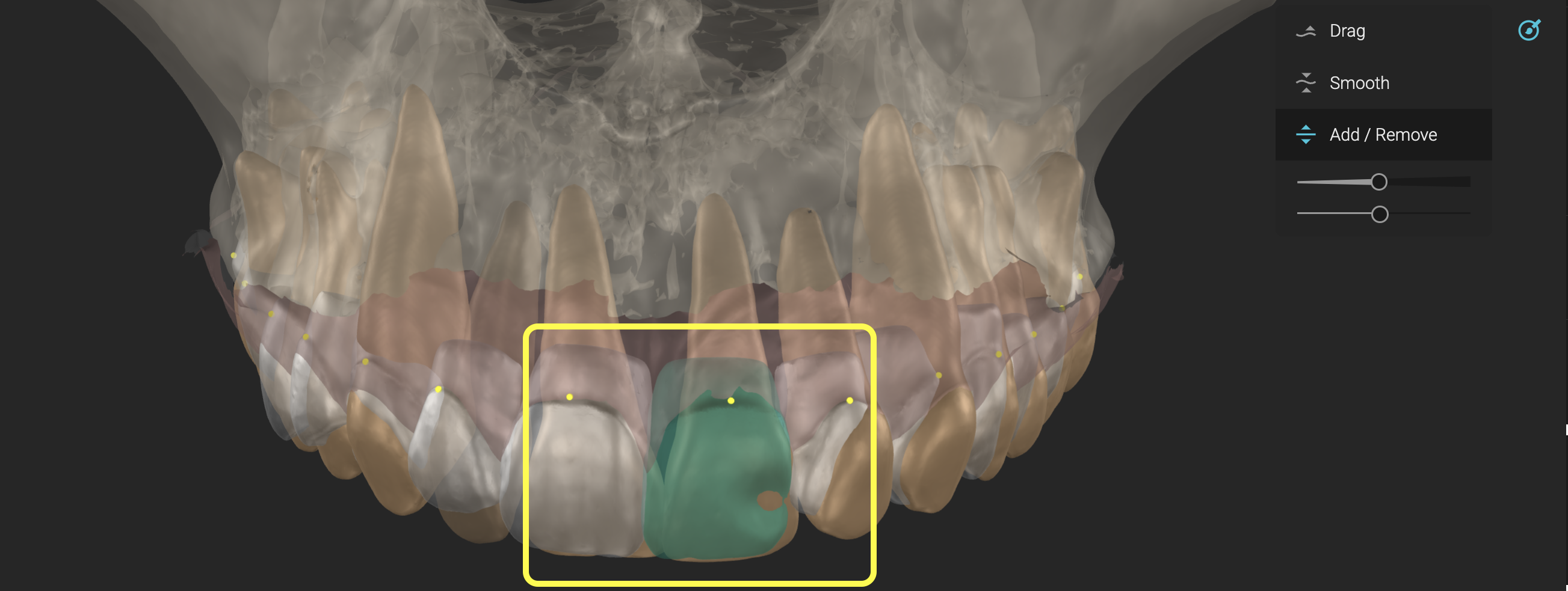

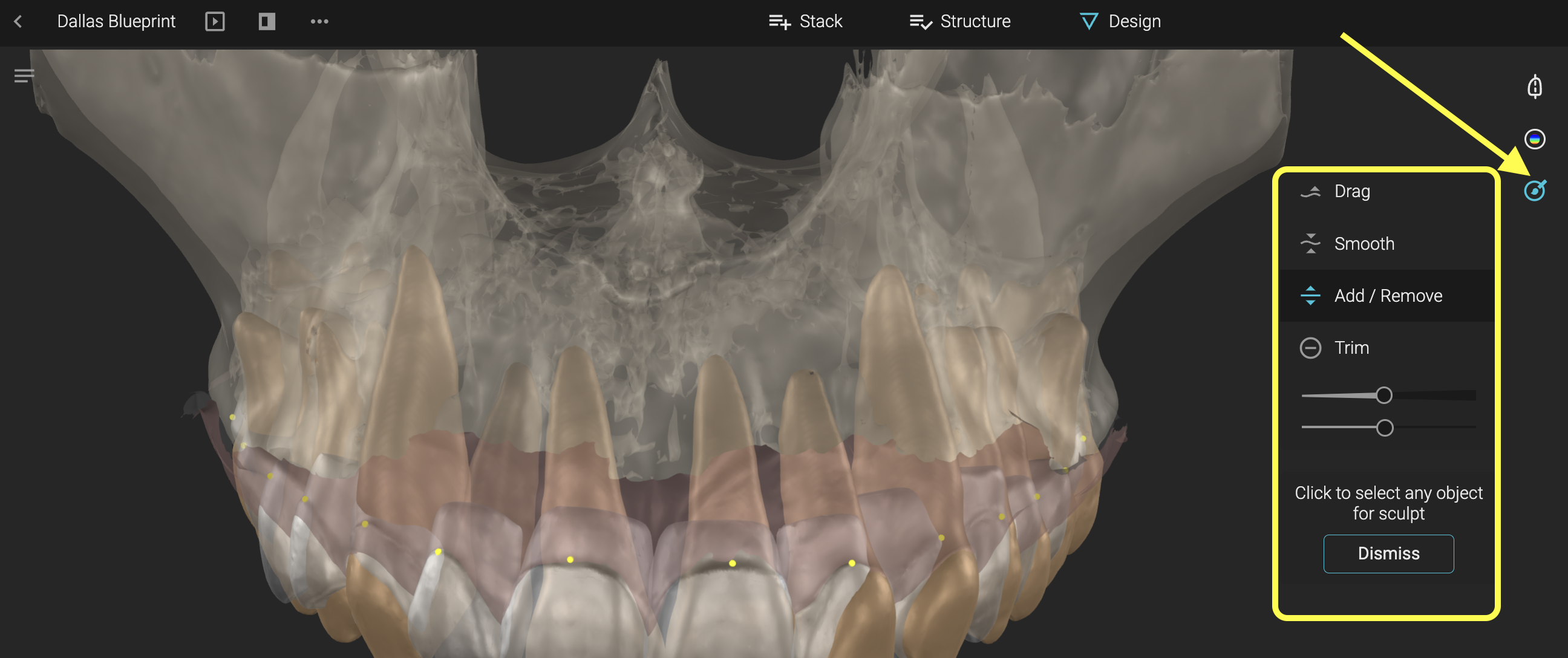

Sculpt tool - Select the type of action, brush size, and brush intensity

• Drag - Reshape structures
• Smooth - A brush used to smooth surfaces on a mesh
• Add / Remove - A brush used to add or remove material. Hold Cmd / Ctrl and click to remove

Click on a structure and drag with the mouse to sculpt
